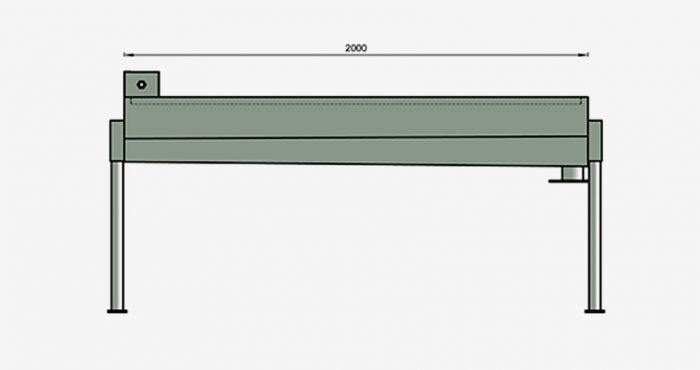

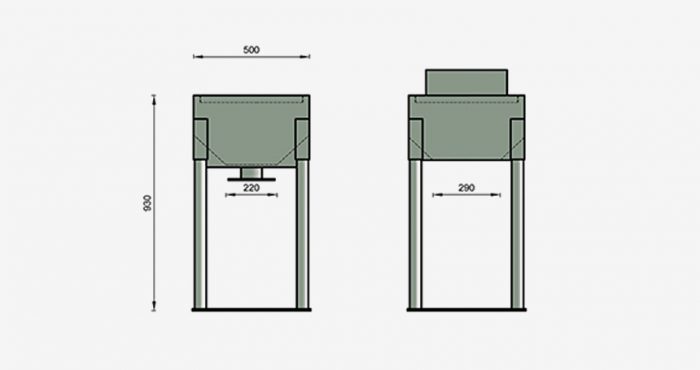

| Code | Volume (l) | A Length (mm) | B Width (mm) |
|---|---|---|---|
| DR8162 | 180 | 1380 | 500 |
| DR8165 | 180 | 1380 | 500 |
| DR8160 | 220 | 2130 | 500 |
| DR8170 | 340 | 2630 | 500 |
| DR8180 | 800 | 3140 | 620 |
| DR8181 | 440 | 4130 | 500 |
| (DR8162 Centre Ball Valve) | |||
| (DR8165 End Ball Valve) | |||

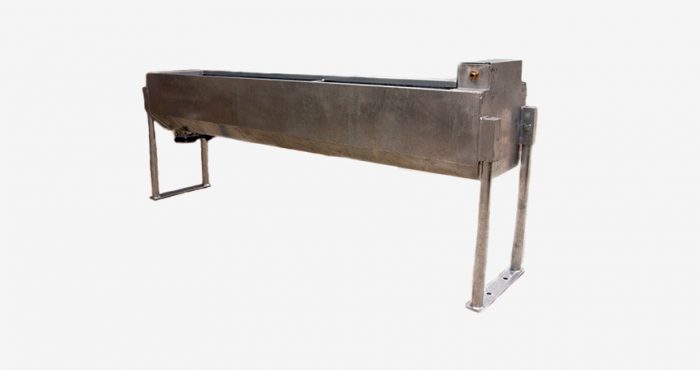

Galvanised Fast Empty Drinker
Description
Galvanized Fast Empty Drinker

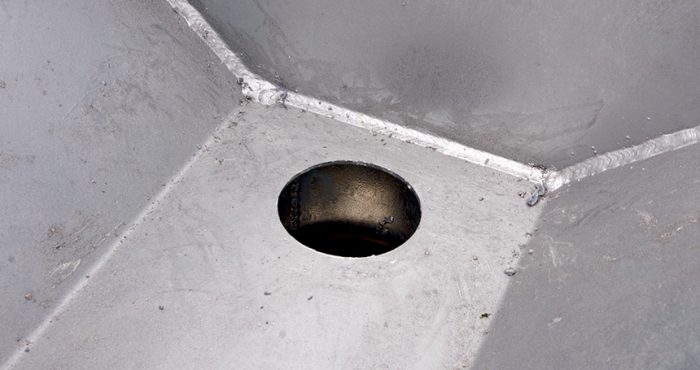

• galvanised drinker with large 76mm fast empty
valve
• tapered towards the valve to help flush/wash out
the drinker when emptying
• adjustable legs to allow correct height positioning

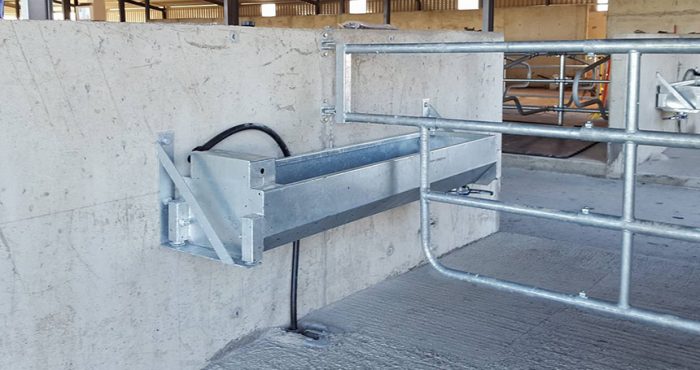

• wall mounting brackets available

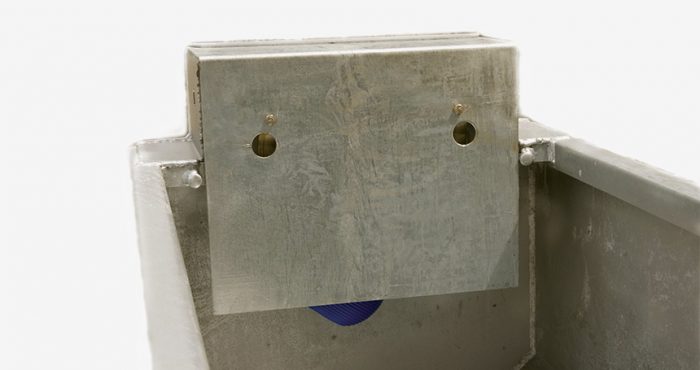

• fast access ball valve lid
• optional fast flow fill valves available
• fully galvanised
• DR8162 – Centre Ball valve
• DR8165 – End ball valve
